Sealed Beam Lamps – PAR36 Emergency Light Bulbs for Egress Fixtures

Sealed beam lamps (PAR36) are the classic, hard-working replacement bulbs used in many PAR36 remote emergency lighting heads and commercial emergency light fixtures. Available in 6V, 12V, and 24V with spot or flood beam patterns, these halogen or LED sealed beams feature screw posts/spade terminals for fast swaps—perfect for keeping battery backup emergency lights ready for code-required operation.

PAR36 Form Factor 6V / 12V / 24V Spot or Flood Halogen or LED Screw Terminals Wet-Head Compatible*

Use sealed beam replacements to maintain legacy halogen systems or upgrade to LED sealed beam PAR36 for lower power draw and reduced relamping. Typical wattages include 6V 7W/9W, 12V 12W/18W, and 24V 12W, plus LED equivalents. Match lamp voltage and wattage to your fixture’s nameplate to protect batteries and ensure the required 90-minute emergency illumination in UL 924 luminaires.

How to Choose the Right PAR36 Sealed Beam

  • Voltage: Match 6V/12V/24V to the fixture or remote-capable emergency light power source.
  • Wattage / LED Equivalent: Follow the spec for runtime and spacing; LED versions reduce load and heat.
  • Beam Pattern: Spot for long, narrow throws (tall spaces); Flood for wide corridor coverage.
  • Lens / Face: Clear or patterned glass for desired distribution and glare control.
  • Terminals: Ensure screw post/spade terminals match your head style.

Working in tough environments? Pair sealed beams with wet-location emergency lights or NEMA-rated emergency fixtures that use gasketed PAR36 heads. For broader relamping needs, see our full emergency light bulbs and exit sign lamps selection.

Common PAR36 Sealed Beam Specs

  • Voltages: 6V, 12V, 24V (AC/DC per fixture)
  • Sources: Halogen or LED sealed beam
  • Beams: Spot (narrow) / Flood (wide), clear or patterned lens
  • Terminals: Screw posts / spade connectors
  • Use Cases: Remote heads, bug-eye fixtures, vandal-resistant housings
💡 What is a sealed beam lamp?

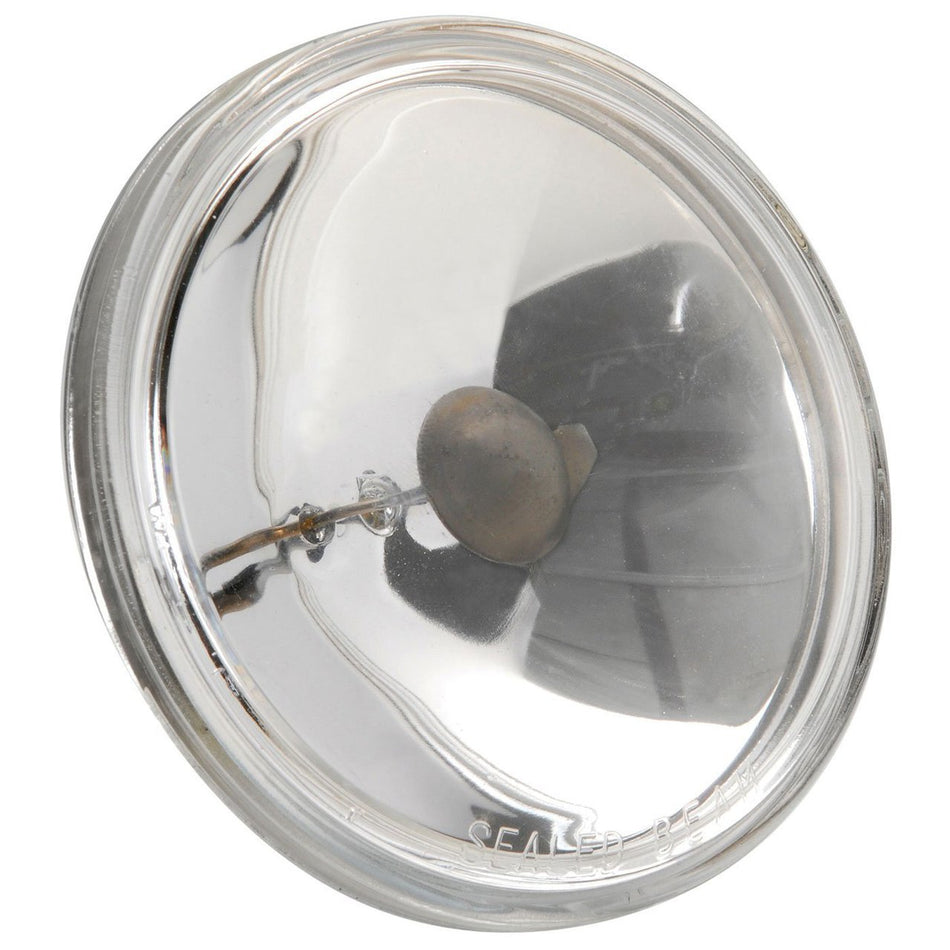

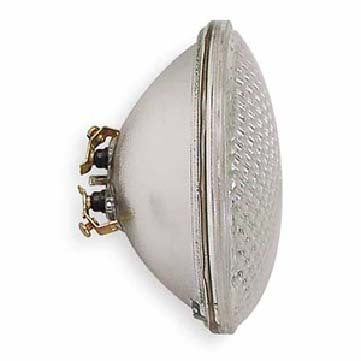

A PAR36 “sealed beam” integrates the bulb, reflector, and lens in a single, rugged glass unit—ideal for emergency lighting heads that demand fast service, stable optics, and durable construction.

*Compatibility varies by head/fixture. Always verify lamp voltage, wattage, and terminal style against your unit’s nameplate or submittal.

Filter products

Match all
Clear all

14 Products

Sealed Beam Tungsten & Halogen Lamps

You need reliable sealed beam lamps that last for years and do not cost a fortune. The typical lamp contains a reflector, filaments and lens that are integrated and sealed. Find a good number of sealed beams, also called parabolic aluminumized reflector (PAR) lamps, on our site.

We have different sizes that vary by length, diameter and voltage ratings. We mostly have 6V and 12V lamps made for vehicle, appliance and building applications. Find these lamps shining anywhere from the front of boats to large theater stages.

Our sealed beam lamps are specially designed to block out the worst natural elements from rain to snow. See all of the choices that we have to offer you.
