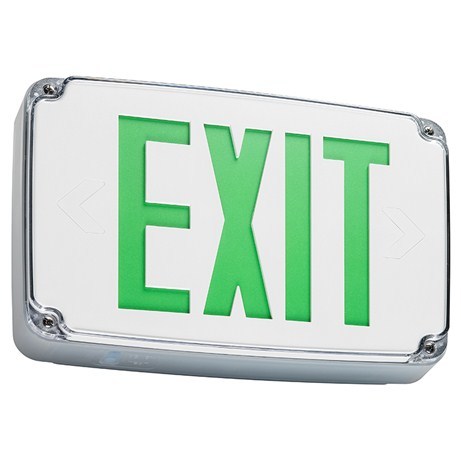

Compact Wet Location Polycarbonate LED Exit Sign Green Letters

Compact Wet Location Polycarbonate Exit Sign Green LED

Key Features

• Amazing Ultra bright, energy efficient, long life Red or Green LEDs.
• Unique bi-color LED indicator light alerts occupant on
  battery condition
• Polycarbonate mounting canopy included for top or end mount.
• Universal knockout pattern on back plate for wall mount
• High-impact resistant, UV-stabilized polycarbonate clear lens.
• Corrosion-resistant enclosure with engineering grade
  silicone gasket.
• Knockouts provided for conduit feed applications.
  EZ snap-out Chevron directional indicator.

ILLUMINATION

• Ultra bright, energy efficient, long life Red or Green LEDs

ELECTRICAL

• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on
  battery condition (Green-normal, Red-check battery).
• 4.8V long life, maintenance-free, rechargeable NiCd battery
  (EM models only).
• Internal solid-state transfer switch automatically connects
  the internal battery to LED board for minimum 90-minute
  emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery
  charging to recharge a discharged battery in 24 hours.

MOUNTING

• Polycarbonate mounting canopy included for top or end mount.
• Universal knockout pattern on back plate for wall mount

HOUSING

• 5VA flame retardant, UV-stabilized polycarbonate in white,
  black or gray finish.
• High-impact resistant, UV-stabilized polycarbonate clear lens.
• Corrosion-resistant enclosure with engineering grade
  silicone gasket.
• Knockouts provided for conduit feed applications.
  EZ snap-out Chevron directional indicators

OPTIONS

• SDT: Self-diagnostic feature performs monthly,
  biannual, and annual tests to ensure reliable
  operation and meets electrical and life safety codes.
• 2C-120V/2C-277V: Dual circuit option on the AC-only unit
  enables it to be connected to two different power supplies
  at the same time.
• TP: Tamper-proof hardware helps discourage
  unauthorized access to the unit.
• Custom: Signs available with requested “special” wording

 WARRANTY / LISTING

• Five year warranty on all electronics and housing.
  Battery prorated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
• Local and State Codes.
• UL Listed for wet locations (-20°C – 50°C).
• Certified to CEC under Title 20 Regulations.
