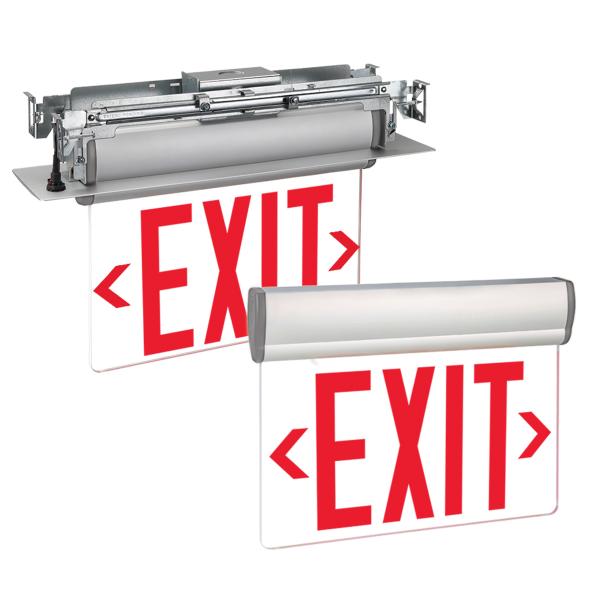

Universal Swivel Mount LED Edge-Lit Exit - Battery Backup

The Exitronix S900 Series LED Edge-lit Exit features a pivoting design
for simple installation in any application, including surface and recessed
wall, ceiling and sloped ceilings. Includes surface mounting canopy as
well as hardware for recessed mounting applications, making this the
most versatile edge-lit sign available. The S900 includes both single- and
double-face configurations for easy ordering and stocking.

FEATURES & BENEFITS
• Suitable for installation in existing drywall applications
• Includes both single- and double-face panel configurations
• Includes surface mounting canopy as well as bracket for recessed mounting
applications
• UL 924 Listed 90 minute emergency run time, 24 hour recharge time
• Field-selectable directional chevrons
• UL Listed for Damp Locations
• California Energy Commission (CEC) compliant

SPECIFICATIONS
Illumination: Long-life, high-intensity, red or green LEDs
Construction: Extruded aluminum housing with high-grade,
acrylic panel
Input: 120/277VAC Dual Primary, 60Hz
Battery: Maintenance-free NiCad battery
Operating Temp: 0°C to 40°C (32°F to 104°F)
Run Time: UL Listed 90 minute emergency run time, 24 hour
recharge time
Mounting: Ceiling and end surface mounting or recessed
Finish: Brushed aluminum, black or white
Certfications: UL Listed for Damp Locations, meets or exceeds
CEC, NEC and NFPA 101
