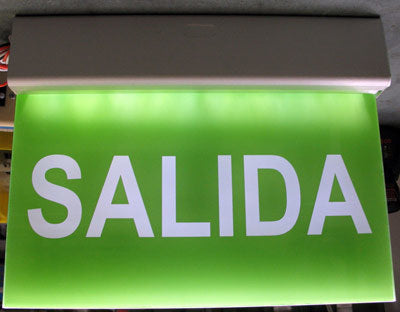

SALIDA Edge Lit Green or Red LED Spanish Exit Sign - Battery Backup

Overview

The Salida Edge Lit Exit Sign is a designer grade LED exit sign that features "SALIDA" instead of "EXIT". This Edge Lit exit sign is available in a variety of color combinations for the letter color and background color on the panel. Red, green, and white LEDs can be used to illuminate this elegant sign. Designed for an upscale resort project in Venezuela, the Salida Edge Lit Exit Sign has become popular in a number of Central and South American countries. The sign consumes less than 5-watts of electricity and can be configured to operate on different voltages including 120, 230, 240, and 277 volt AC, 50 or 60hz.

Salida Edge Lit Exit Signs can be surface or recessed mounted. Surface mount exit signs come with a mounting bracket that allows the sign to be mounted by the top or side, flag style. The panel features "SALIDA" and can be ordered as single or double sided. The sign is designed to meet UL 924 specifications. The battery backup model comes with a NiCad exit sign battery that provides 90 minutes of emergency power. The housing can be ordered in an aluminum, white, or black finish.

Features

• "SALIDA" in a number of letter/background color combos
• Attractive - glowing red high-grade acrylic exit panel
• Efficient - uses less than five watts electricity at all times
• Push-to-test button with LED charging indicator
• Works for single and double face applications
• UL924 Listed for the United States
• 5 year warranty

Application

The Salida Edge Lit LED Exit Sign is designed for use in Spanish speaking countries. It's a popular choice for upscale commercial offices as well as apartment complexes and high-end retail. Whenever a distinguished look is desired, the Edge Lit Exit Sign is always the optimal choice.

External Specifications

This upscale exit sign features an aluminum housing that comes standard in a brushed aluminum finish and is also available with white or black finishes.

Internal Specifications

Red or green LED (Light Emitting Diode) light strips provide even and bright EXIT lighting while consuming less than 5 watts of electricity at all times.

Electrical Specifications

120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.

Code Compliance

UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.

Warranty

Three-year warranty on parts, five-year prorated warranty on battery.

Maintenance Profile

The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium exit sign battery is replaceable.

Lifespan

8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).

Options

• Choose between red, green, and white letters
• choose between a clear, mirrored, or white background
• Choose between a single and double sided exit sign
• Choose between a recessed or surface mounting edge lit

Technology

Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.

Appeal

Upscale design and aesthetic appeal. The many options for the Salida Edge Lit Exit Sign make it a one of a kind product.

Overall Value

A great value, the Salida Edge Lit Exit Sign provides a classy look, reliable electronics, variety of options and color choices, and three-year warranty.

Installation

SURFACE MOUNTED: The surface mount Salida Edge Lit Exit Sign is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.

SURFACE MOUNTED: The recessed mount Salida Edge Lit Exit Sign is suitable for installation into drywall and suspended ceiling applications. The SALIDA LED Edge Lit exit sign comes with detailed instructions for how to install the fixture. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
