Oval Micro LED Thermoplastic Emergency Unit

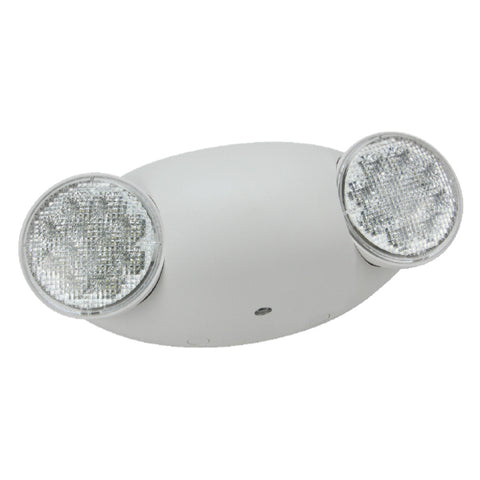

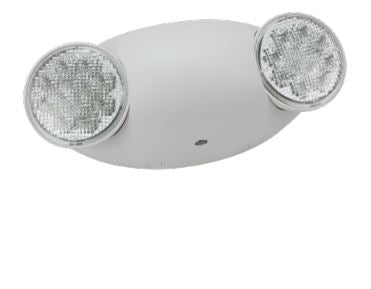

The compact QMR Series combines a contoured low-profile, contemporary appearance with energy-efficient LED dependability. Fully adjustable round heads in a value-engineered emergency unit provide economical path of egress illumination for any commercial application. The QMR Series is an excellent match for the QCRS exit/emergency combo.

FEATURES & BENEFITS

•Two (2) 0.5W fully adjustable round heads with long-lasting high-intensity LED lamps

•Suitable for Damp Locations •Suitable for wall mount

• California Energy Commission (CEC) Title 20 Compliant

SPECIFICATIONS

Illumination: Two (2) fully adjustable, long-life, high-intensity LED lamp heads, 0.5W per head

Housing: Injection-molded UL 94 V-0 flame-retardant, high impact resistant thermoplastic enclosure

Input: 120/277VAC Dual primary, 60Hz

Battery: Maintenance-free 3.6V NiCad battery Operating Temp: 0°C to 40°C (32°F to 104°F)

Run Time: 90-minute emergency run time, 24-hour recharge time

Mounting: Surface-mounted wall

Finish: White

Certifications: UL 924 Listed for Damp Locations Meets NFPA 101 Life Safety Code, NEC, OSHA California Energy Commission (CEC) Title 20 Compliant

Warranty: Any component that fails due to a manufacturing defect is guaranteed for three years with a separate five-year prorated warranty on the battery. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces.

ILLUMINATION

Illumination is provided by high-intensity, long-life LEDs consuming only 0.5W of power per head. LEDs provide excellent illumination while maximizing energy efficiency.

ELECTRICAL

Input

Dual-voltage input 120 or 277VAC @ 60Hz.

Nickel Cadmium Battery

– NiCad Exitronix NiCad batteries are maintenance-free.

Solid-State Transfer

The switching circuit is designed to detect a loss of AC power and automatically energizes the lamps. Upon restoration of the AC voltage, the emergency lamps will switch off and the charger will automatically recharge the battery
