Exit Sign, NYC - Red 8" Letters - White Steel - Battery Backup

Overview

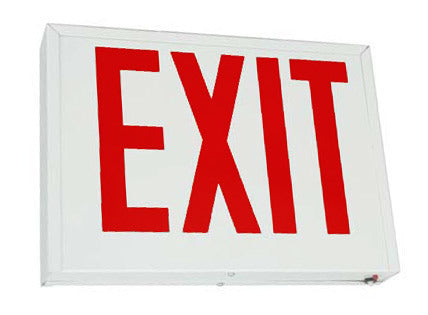

The EXIT-NY Series is steel exit sign that is approved for use in New York City. 8" high, 1" wide red letters are featured with a white baked enamel finish. Bright and efficient LEDs provide reliable EXIT illumination and a small battery backup system is located inside the unit, providing reliable emergency power. A push-to-test button allows for easy testing of the battery backup system. NYC exit signs are manufactured from metal, this one from 20-gauge steel.

This New York City exit sign comes with a universal mounting plate allows for effortless installation by the top, side,or back of the unit. Comes complete with two EXIT face-plates and one back-plate, so it can be configured for wither single or double sided applications. Operates using 120 or 277v AC power. Damp location rating is standard and the unit is UL 924 Listed and code compliant throughout North America.

Features

• Compliant throughout the five boroughs
• Efficient LED technology consumes less than 5 watts electricity
• Push-to-test button with LED charging indicator
• 20-gauge steel housing is durable yet attractive
• UL924 Listed for the United States
• 5 year warranty

Application

The EXIT-NY Series is designed for all types of indoor exit sign applications from schools to offices to retail stores and more. The universal configuration allows this exit sign to be used for single face and double face installations. Damp location rated.

External Specifications

Constructed from 20-gauge steel. Mounting plate is constructed from 20-gauge steel as well.

Internal Specifications

Red LEDs provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features nickel-cadmium battery pack.

Electrical Specifications

120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.

Code Compliance

New York City exit sign approved for five boroughs (Manhattan, Staten Island, Brooklyn, Queens, and the Bronx). UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.

Warranty

Five-year warranty on parts, five-year prorated warranty on battery.

Maintenance Profile

The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery is replaceable.

Lifespan

8-10 year expected lifespan on all components except replaceable battery (five-year lifespan)

Options

There are no options for this model.

Technology

Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.

Appeal

Baked white enamel powder coat finish blends well with most interiors.

Overall Value

This mode is a great value, offered at less than $70 it will make your facility code compliant for years to come.

Installation

This NYC compliant exit sign is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
