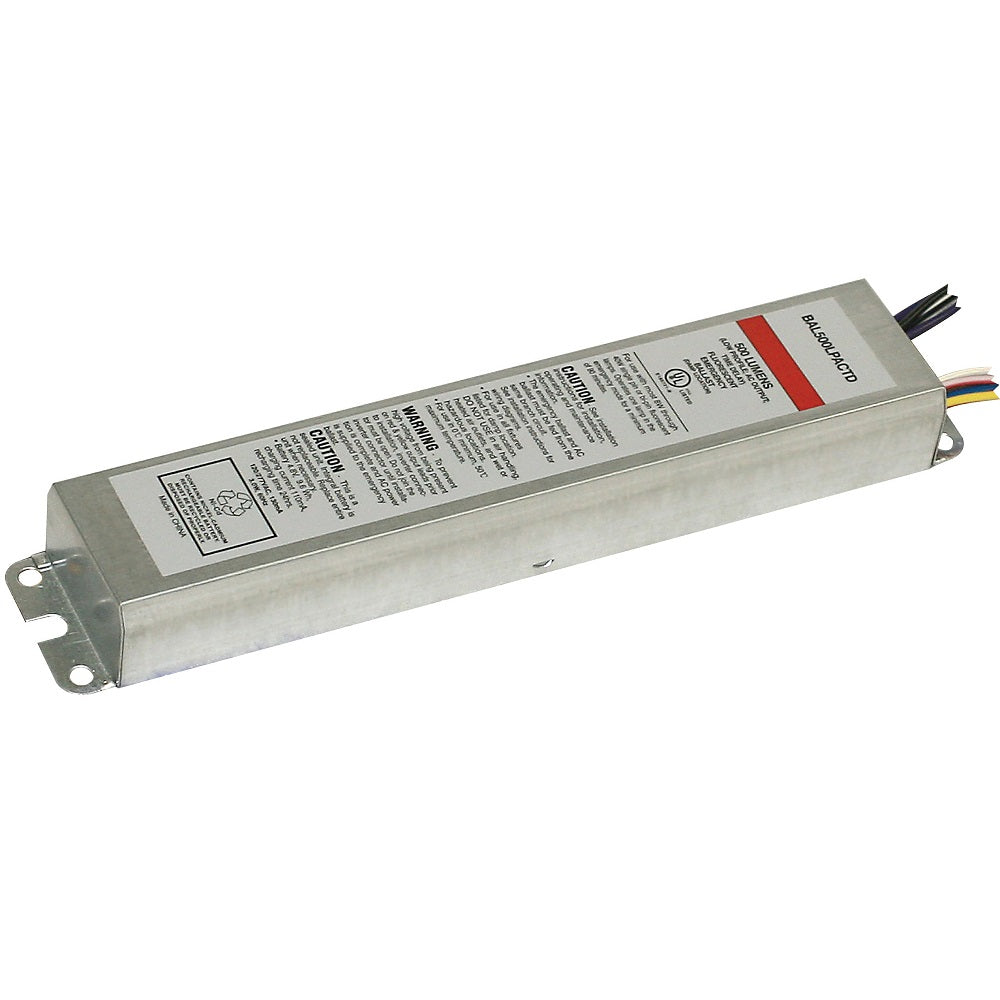

LOW PROFILE FLUORESCENT EMERGENCY BALLAST 500 LUMENS

Illumination

• Works with or without an AC Ballast to convert new or existing fluorescent fixtures in to unobstructive emergency lighting.
• Operates one lamp in the emergency mode for a minimum of 90-minutes.
• Provides a maximum initial lumen output of 500 lumens.

Electrical

• Dual 120/277 voltage.
• Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V long-life, maintenance-free, rechargeable sealed NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to the fluorescent lamp for a minimum of 90-minute emergency illumination.
• Time delay enhancement to overcome end-of-life circuit protection.

Mounting

• Suitable for installation inside, on top, or in remote of the fixture.
• Can be used in both switched and unswitched fixtures.
• UL Listed for factory or field installation.

Housing

• Low-profile galvanized steel construction.
• Compact design fits most fluorescent fixtures.

Warranty/Listing

• Five-year warranty against defects in material and workmanship (lamps excluded).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• Suitable for use in sealed and gasketed fixtures.
• UL LIsted for damp locations (0°C - 50°C).

Lamp Compatibility

• Compatible with most one-, two-, three-, and four-lamp electronic standard and dimming AC ballasts.
• Operates one T5, T5HO, T8, T12, Circular T5/T9, U-bend T8/T12 and 4-pin long CFL lamp in emergency mode.
