LED Area Light - Parking lot, walkway, roadway, building wall

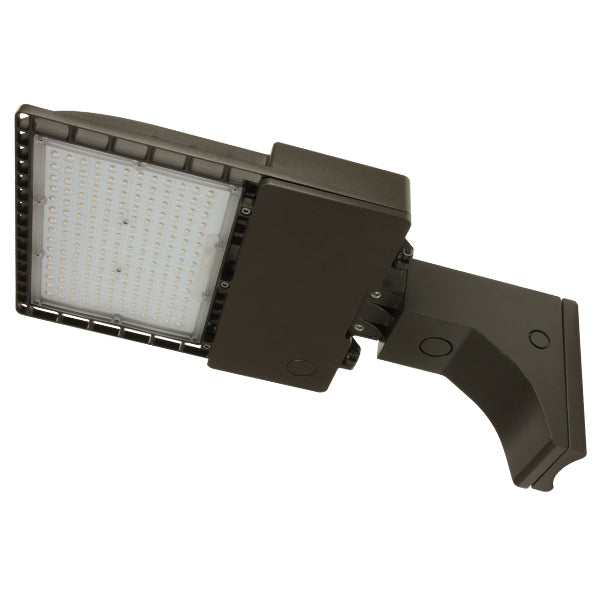

The RxA Series LED area luminaire features a sleek low-profile housing design in lumen packages ranging from 9600 lumens to 41,000 lumens. Its high-efficiency light engine is designed for optimal light control and illumination with its three distribution types in three physical sizes. The RxA family provides substantial energy savings through efficient delivery of light with minimal to no uplight and efficacies up to 139 LPW. International Dark Sky friendly and approved in 3000K configurations (with fixed downlight mount). The RxA ships standard with a 7" upswept arm and is designed for ease of installation on poles, slip fitters, trunnion, or wall mount applications. This product is ideal for large areas such as parking lots, walkways, roadways, building walls, etc.

SPECIFICATIONS

Construction:

• Sleek die-cast aluminum housing with stainless steel hardware and powder coated bronze (standard) finish for durability

• UV-stabilized polycarbonate optical lens

• Integral heat sink fins maximize heat dissipation

• Hinged driver access for ease of maintenance

• Standard with 7" straight arm for square pole or round pole (with round pole adaptor). Wall mount adapter is also available

• Slotted bolt pattern suitable for retrofit to most existing drill hole patterns

• Includes a 12" whip (5 conductors provided for convenience, dimming leads not connected)

 Optics/LEDs:

• Designed with minimal uplight to eliminate light pollution

• 70 to 300 Watts replace up to 750 Watts HID for up to 70% energy savings

• Efficacies up to 139 LPW maximize energy savings and utility rebates

• Type III, IV and V distributions optimize light distribution

• Available in 3000K, 4000K and 5000K CCT

• L70 of 130,000 hours • CRI ≥70

 Electrical:

• Class 2 power supply, 120-277VAC, 50/60Hz

• 1-10V Dimming driver for models 150W+ (120-277VAC only), dimming leads require connection in field

• Power supply with high-power factor of 90% typical

• 347/480VAC Dedicated driver option for 70W, 150W, 200W and 300W

• Standard 10kVA surge protection for models ≥150W

Testing & Compliance:

• cULus Listed for Wet Locations

• Tested to meet IP66 requirements

• DesignLights Consortium® (DLC) PREMIUM Qualified (consult QPL for qualified models)

• Operating temperature: -40°C to 45°C (-40°F to 113°F)

• International Dark Sky friendly approved product. (IDA) 3000K only (compliant only with a fixed downlight mount)
