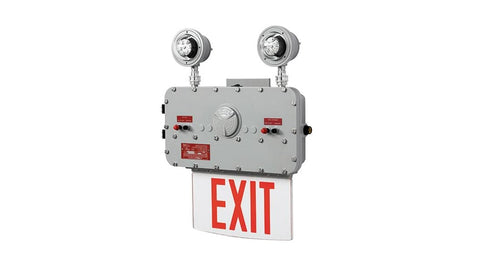

Explosion Proof LED Emergency Light & Exit Sign

• Class I, Division 1, Groups C & D

• Class II, Division 1, Groups E, F & G

• Class III

• Class I, Zone 1, Groups IIA, IIB

• USCG Regulation 46 CFR Subparts 111.75-15(e) & 112.43

• UL 844 Hazardous Locations

• UL 1598A Marine Outside Type

• UL 1598 Wet Locations

• UL 8750 LED Safety

• UL 924 Emergency Lighting

• CUL

• IP65

• NEMA 4X

• Patent No. 7,287,347; Other Patents Pending

Key Features:

Two high lumen spotlights can be adjusted in horizontal and vertical planes

Independent battery backup system for exit signs and spotlights

The unit can power up to two optional remote spotlights Field replaceable LED circuit boards and drivers with quick disconnects

Emergency battery backup integral to sign (no additional enclosure required)

-hour emergency operation

Edge-lit sign

Additional Features:

• Wall, pendant, and end mounting options

• Captive, hinged-access door

• Wide and narrow-beam optics available

• Separate push-to-test and pilot light for local and remote heads

• Separate sealed NiCad batteries for exit sign

• Alternate exit legend and languages available

• Single- or double-sided option

• Three 1” NPT hubs

• Red or green LED options

Standard Materials:

• Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish

• Gasket: One-piece neoprene

• Sign: Acrylic

• Hardware: Stainless steel
