Edge Lit LED Exit Sign New York City (NYC) Compliant with Ceiling Recessed Mount

In stock
SKU: NYRELZXTE1RCAEM
$137.99
Single or Double Sided?
Panel
Trim Color

Got questions?

Give us a call 800-847-1955!

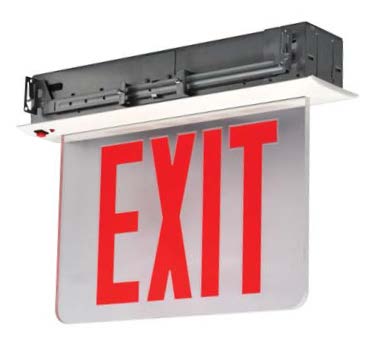

NEW YORK CITY COMPLIANT RECESSED EDGELIT ALUMINUM EXIT SIGN NYRELZXTE


FEATURES

  • Ultra bright, energy efficient, long life Red or Green LED.
  • UV-stabilized ultra-clear acrylic edge lit panel provides consistent, uniform illumination.
  • Double face utilizes factory installed silver or white mylar background panel.
  • New York City compliant 8” EXIT letters.
  • Dual 120/277 Voltage
  • Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
  • Aluminum mounting canopy included for top, end or back mount. Available in optional black or white powder-coated finishes.
  • Premium-grade, extruded aluminum housing.

ILLUMINATION

  • Ultra bright, energy efficient, long life Red or Green LED.
  • UV-stabilized ultra-clear acrylic edge lit panel provides consistent, uniform illumination.
  • Double face utilizes factory installed silver or white mylar background panel.
  • New York City compliant 8” EXIT letters.

ELECTRICAL

  • Dual 120/277 Voltage
  • Charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
  • 4.8V long life, maintenance-free, rechargeable NiCd battery (EM models only).
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

  • Aluminum mounting canopy included for top, end or back mount. Available in optional black or white powder-coated finishes.
  • Premium-grade, extruded aluminum housing (also available in black or white powder-coated finishes).
  • Self-adhesive Chevron appliques and guide template provided for directional indication.

HOUSING

  • Premium-grade, extruded aluminum housing.
  • Extruded aluminum trim assembly is easily detachable from
    below, providing accessibility for service or maintenance.
  • Available in black or white powder-coated finishes.
  • Self-adhesive chevron appliques and guide template
    provided for directional indication.

OPTIONS

  •  SDT: Self-diagnostic feature performs monthly, biannual,
    and annual tests to ensure reliable operation and meet
    electrical and life safety codes.
  • SPV: UL Listed for special voltage option.
  • WM: Allows for the unit to be wall recessed mounted.

WARRANTY / LISTING

  • Five year warranty on all electronics and housing. Battery
    prorated for five years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
  • Local and State Codes.
  • UL Listed for damp locations (0°C – 50°C).
