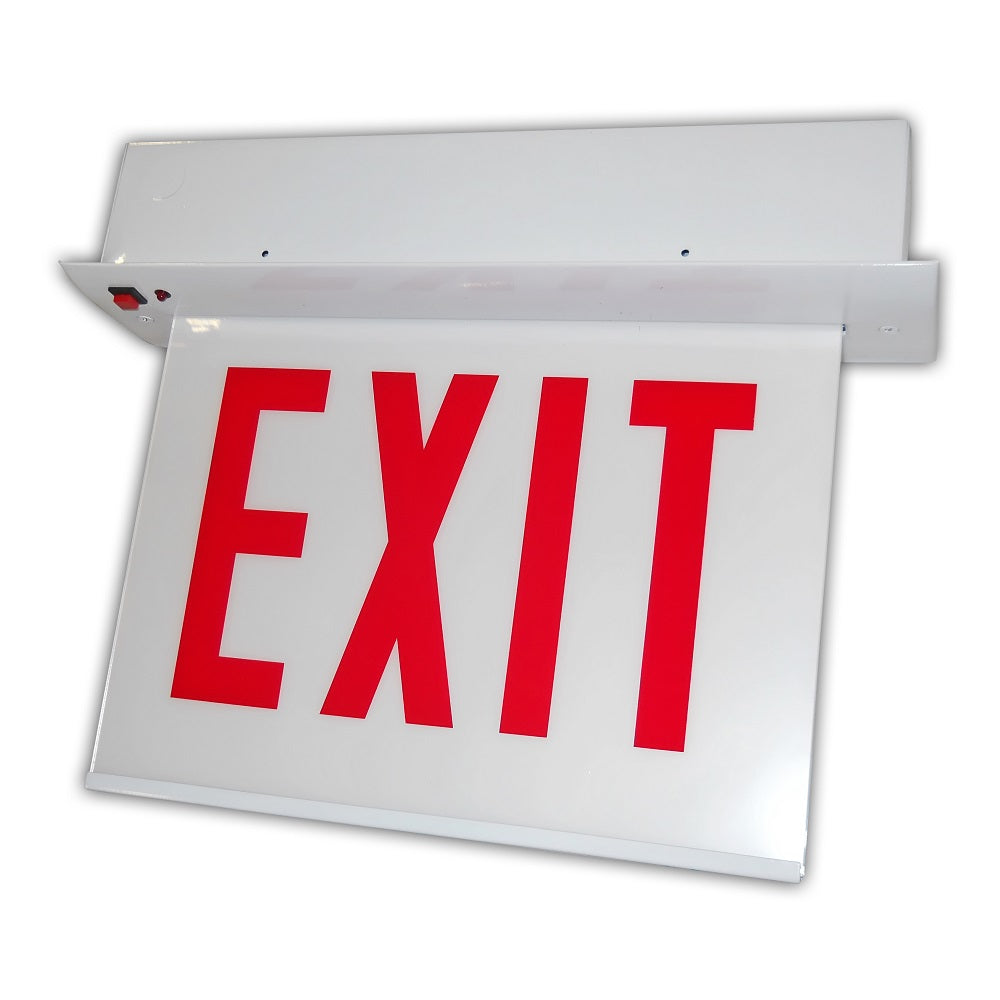

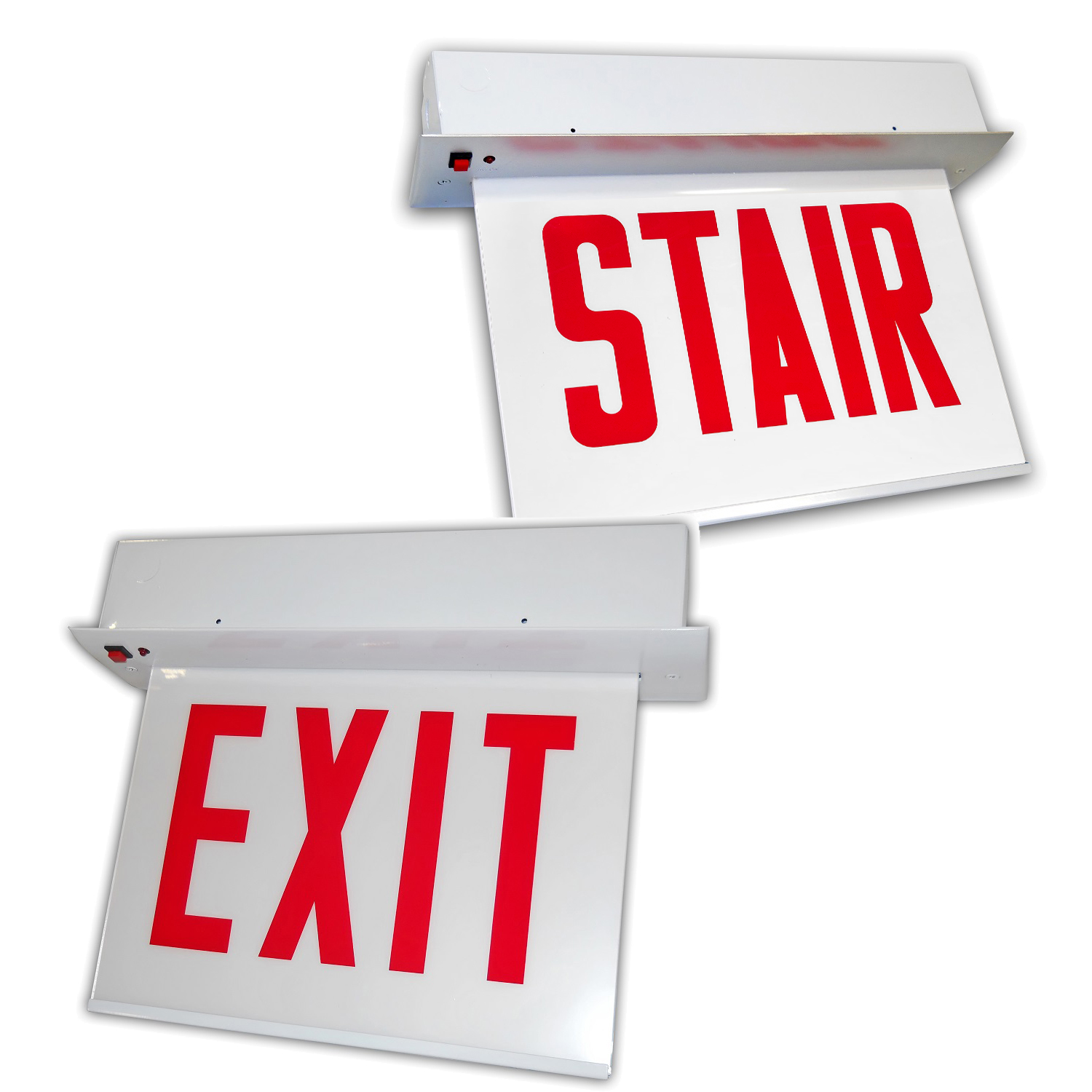

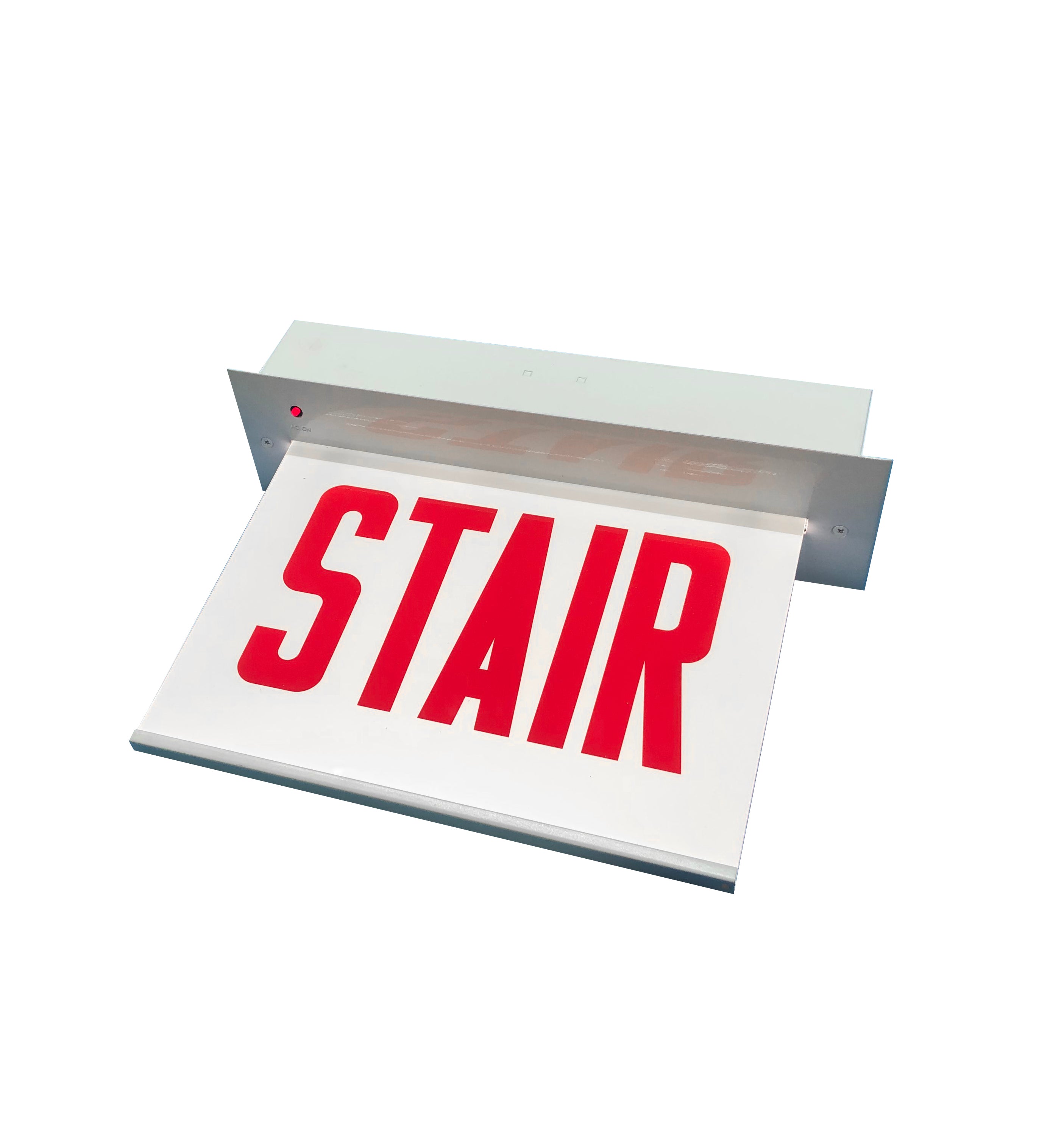

Chicago Approved Recessed Edge lit Aluminum Exit/Stair Sign - with Battery Backup

Chicago Approved Edge lit Aluminum Exit/Stair Signs

New! A gorgeous and versatile edge-lit exit sign. Approved by the city of Chicago.

FEATURES

• Ultra-bright, energy efficient, long-lasting white LEDs provide uniform illumination.
• UV stabilized, silk screened acrylic panels provide consistent,
  uniform illumination.
• Dual 120V/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch
  for mandated code compliance testing.
• Premium-grade, extruded aluminum housing (also available
  in optional white powder-coated finish).
• Single or double face configurations.
• Five year warranty on all electronics and housing.
• Battery prorated for five years.

ILLUMINATION WARRANTY / LISTING

• Ultra-bright, energy efficient, long-lasting white LEDs provide
  uniform illumination.
• UV stabilized, silk screened acrylic panels provide consistent,
  uniform illumination.
• Dual 120V/277 voltage.
• Charge rate/power “ON” LED indicator light and push to test
  switch for mandated code compliance testing.
• 4.8V Long-life, maintenance-free, rechargeable NiCd battery
  (EM models only).
• Internal solid-state transfer switch automatically connects the internal
  battery to LED board for minimum 120-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery
  charging to recharge a discharged battery in 24 hours

MOUNTING

• Die-cast aluminum mounting canopy provided for universal
  top, end or back mount.

HOUSING

• Premium-grade, extruded aluminum housing (also available
  in optional white powder-coated finish).
• Single or double face configurations.

WARRANTY / LISTING

• Five year warranty on all electronics and housing.
• Battery prorated for five years.
• UL listed for damp locations (0° – 50°C).
• Meets UL924, NFPA101 Life Safety Code, NEC, OSHA,
• Local and State Codes.
• Meets city of Chicago requirements.
• Certified to CEC under Title 20 Regulations.
